Charging Time
8 hours*
-
Wheel Base
2118mm
-
Length
2781mm
-
Width
995mm
-
Height
1799mm
-
Rear Wheel Track
858mm
-
Front Overhang
230mm
-
Rear Overhang
420mm
-
Wheel Size
3.75 x 12"
-
Ground Clearance
220mm
-
Turning Radius
2.8m
-
Turning_angle
38
-
Passenger
Driver+4
-
Delivery Box size, LWH (Outer)
N/A
-
Platform Area
N/A
-
Brakes
Mechanical Drum type
-
Brake Front
130mm Dia Mechanical
-
Brake Rear
160mm Dia Mechanical
-
Brake Chasis
Steel ladder type with CED
-

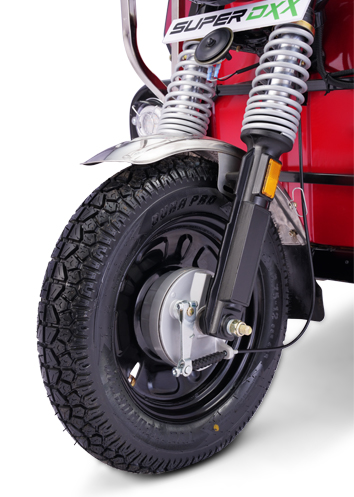

Front Suspension
Telescopic with Hydraulic Damper
-
Rear Suspension
Leaf Spring with Hydraulic Damper
-
Kerb weight without Battery
255Kg
-
Battery Weight
144Kg
-
Kerb weight with Battery
399Kg
-
Payload
380Kg
-
Maximum GVW
779Kg
-
Tyre Size
3.75x12"
-
Tyr Make
CEAT
-
Motor Type
BLDC
-
Drive System
1 speed gear box
-
Controller Type
BLDC Type
-
Voltage rating
48V
-
Battery Type
Lead Acid
-
Battery Make
Eastman
-
System Voltage
48V
-
Battery Capacity (kWH)
130 Ah
-
Electro Chemical Couple
Lead Acid
-
Warrenty
12 months
